Omega Fluor™ Plus Gel Documentation System, 365 nm 81-12531-00

Gel Company


Call for pricing

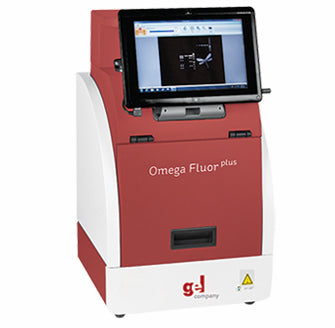

Omega Fluor™ Plus Gel Documentation System, 365 nm 81-12531-00

Power and performance in an advanced yet compact system.

Boosted by a high resolution camera and hands free SmartCapture Technology™, the Omega Fluor Plus has everything you need for exceptional DNA and protein imaging, including the tablet! Switching between applications is a breeze with standard features such as multiple light sources and a multi-position filter wheel. Optional accessories and analysis software complete the imaging solution.

Features & Benefits

  • Hands-free SmartCapture Technology™
  • No camera or focus adjustment required
  • Application flexibility
  • Multiple excitation sources for nucleotide and protein stains
  • Absorbance for Ponceau-stained membranes or petri dishes
  • Publication-quality images
  • 4,096 grayscales with 5 million pixels for excellent resolution
  • Universal TIFF and JPEG file formats
  • Small footprint, large format
  • Compact footprint fits right on your bench top
  • Accommodates large format protein and nucleotide gels (i.e. PROTEAN II, Subcell 96)

Imaging Area: up to 24.0 x 20.0 cm

Specifications
Applications - UV Imaging, White Light Imaging and Blue Light Imaging

Dye Compatibility - SYBR® Safe, SYBR family, Ethidium Bromide, Coomassie Blue, Silver Stain, AdvanStain Scarlet, SYPRO® Ruby, Oriole™ and more

Hardware - 5MP scientific grade CCD camera with a fixed lens, integrated tablet with pre-installed Image Capture Software

Software - Intuitive Omega Fluor Plus Capture Software, Optional Image Analysis Software

Excitation - Trans-UV (365 nm wavelength), Trans-white conversion scren (optional), Epi-white LEDs, Epi-blue LEDs

Emission - Orange (included), Blue, Green, Red (optional)

Dimensions (W x D x H) - 13.6 x 12.2 x 27.0 in (35.6 x 31.8 x 63.5 cm)

Weight - 49.0 lbs (22.2 kg)
